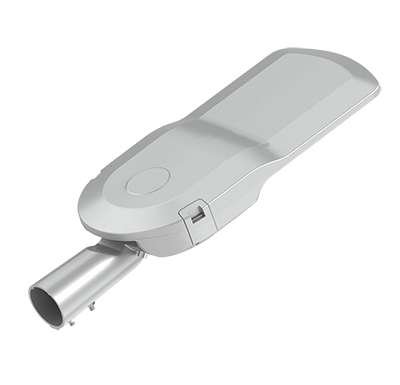

Toothless structure/dust/self-cleaning design
The back of the whole lamp is smooth, toothless design, highly dust-proof and self-cleaning

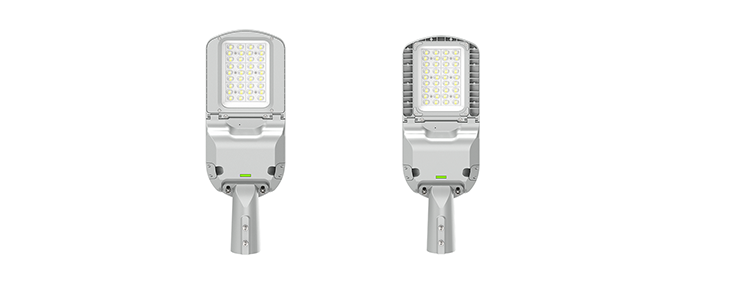

Compatible Design
·
Independent drive cavity design
Independent driver cavity design, better protection of light source and driver, water / heat isolation protection;
·

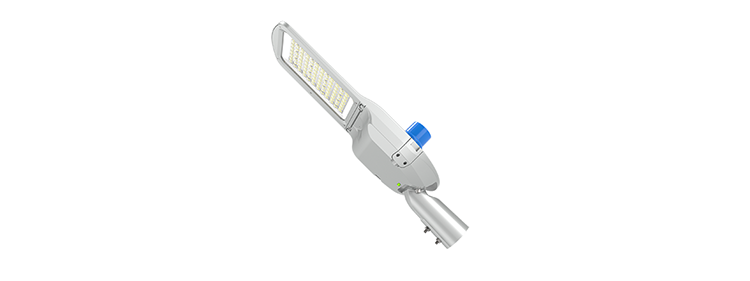

Intelligent control
Support daylight control, time control, LoRa, Zigbee and other wired and wireless remote control;
·
Correlated color temperature switchable (CCT switchable)
The correlated color temperature can be variably adjusted according to the weather sensing data, and the adjustment range is 3000~6500K;
·

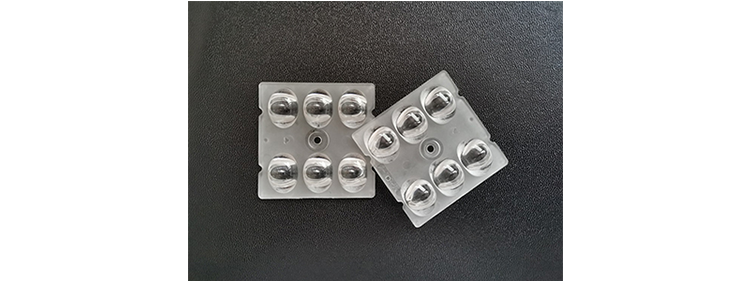

Secondary Optical Design
Professional secondary optical design, maximizes the balance of individual parameters, minimizes color reproduction caused by secondary optics, and supports rapid light distribution expansion;
·
Easy to install
Standard support for horizontal/vertical installation, the angle is adjustable;
·
Structural strength

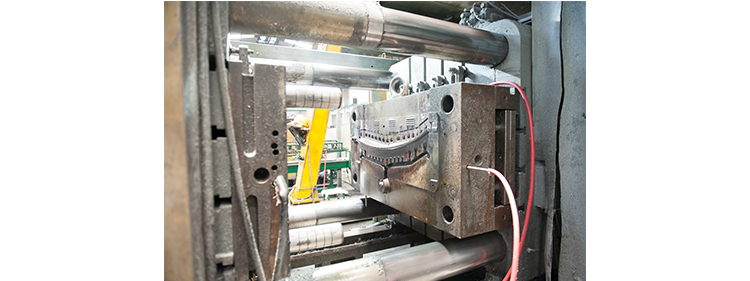

All-metal aluminum alloy structure, one-piece die-casting, overall protection, can easily withstand 4 times its own gravity, and dare to face bad weather;
·
Waterproof grade IP66
The waterproof design of the overall structure is adopted to prevent glue, and the waterproof level is ≥IP66.
·
Main Technical Data
(below data based on 130LM/W)
|
system power
|
25w
|
50w
|
60w
|
80w
|
100w
|
|
Luminous Flux
|
3600+/-10%
|
6500+/-10%
|
7200+/-10%
|
10800+/-10%
|
13000+/-10%
|
|
LED quantity
|
96pcs
|
96pcs
|
96pcs
|
144pcs
|
144pcs
|
|
system power
|
120w
|
150w
|
180w
|
200w
|
250w
|
|
Luminous Flux
|
14400+/-10%
|
18750+/-10%
|
21600+/-10%
|
26000+/-10%
|
30000+/-10%
|
|
LED quantity
|
144pcs
|
192pcs
|
192pcs
|
256pcs
|
256pcs
|
|
system power
|
300w
|
|
|
|
|
|
Luminous Flux
|
39000+/-10%
|
|
|
|
|
|
LED quantity
|
384pcs
|
|
|
|
|
|
CCT |
3000/4000/5000K for option, CCT adjustable for option |
|
CRI |
≥70Ra |
|
beam angle |

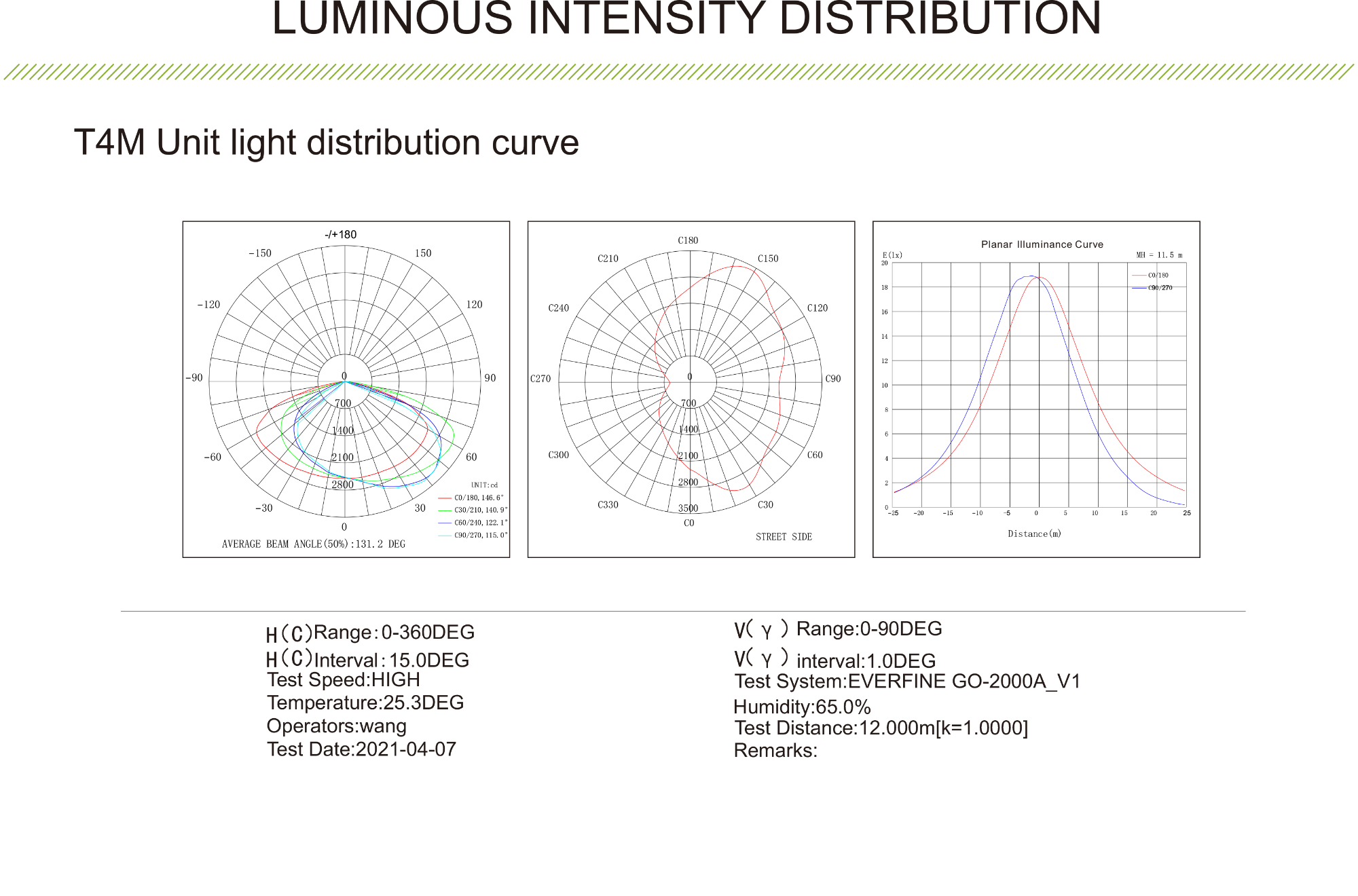

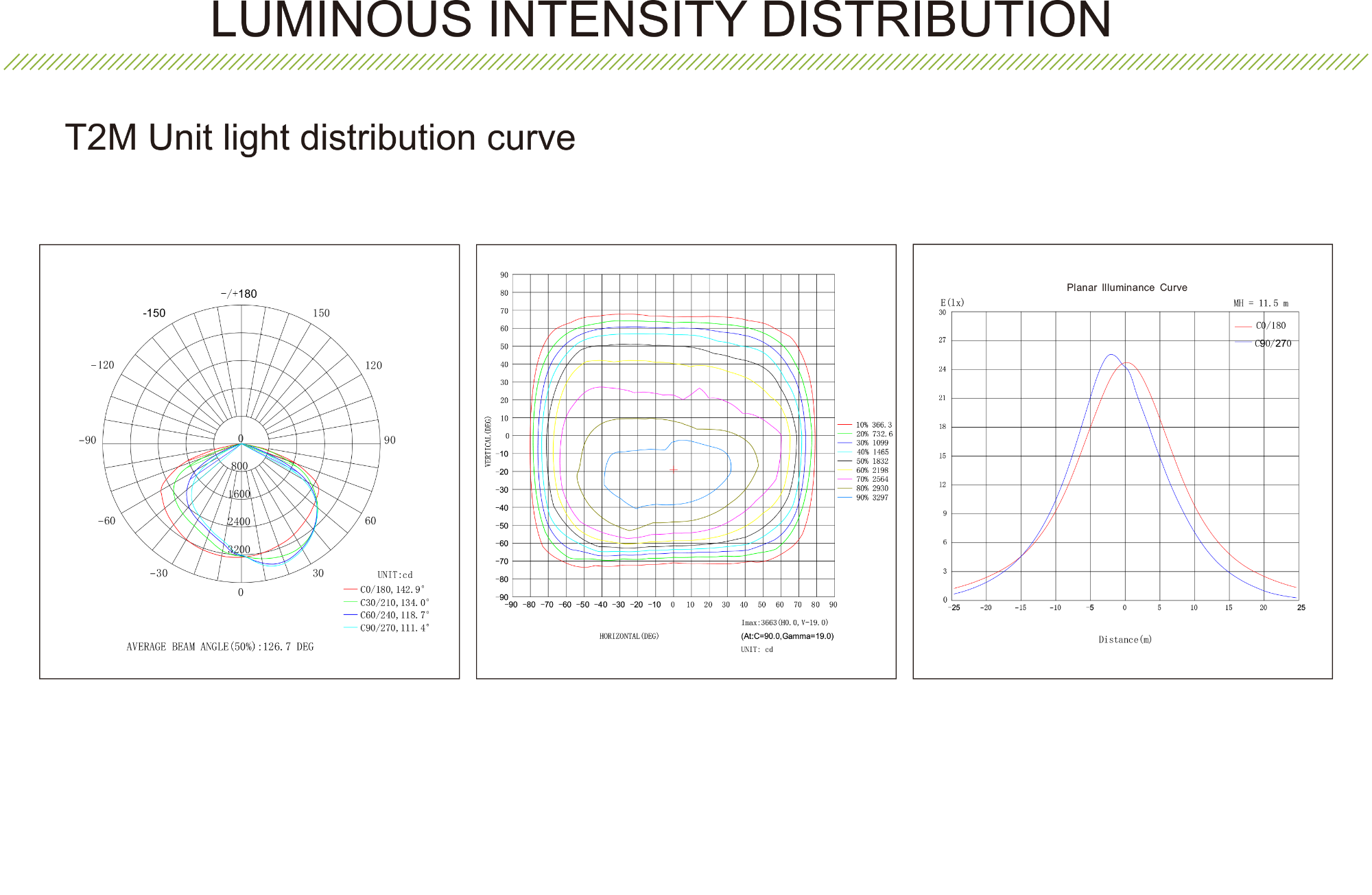

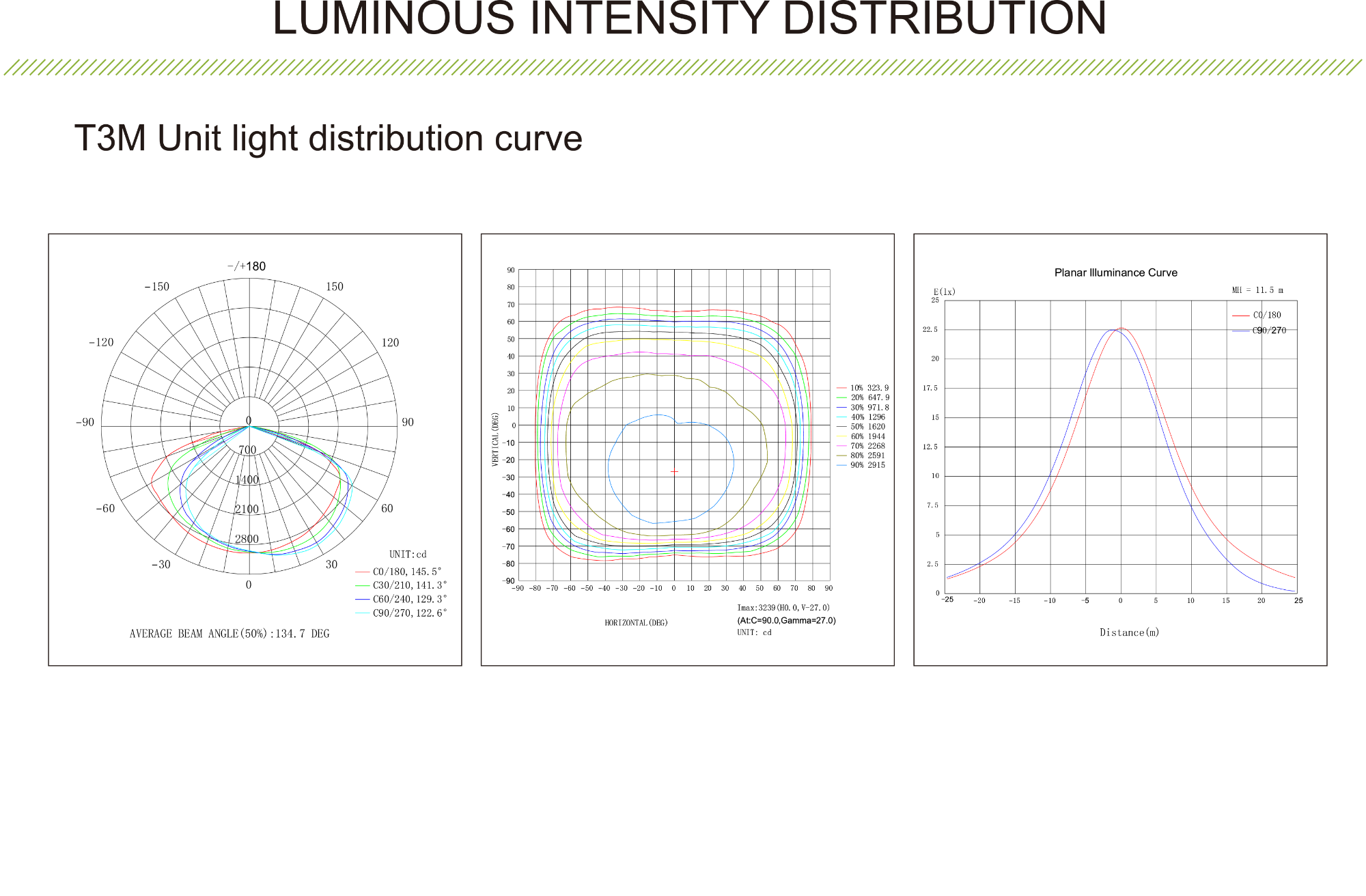

T2M,T3M,T4M |
|
main material |
Aluminium alloy, PC |
|
stockage temperature |
-30~+60℃ |
|
operating temperature |
-30~+50℃ |
|
Frequence |
50/60Hz |
|
input voltage |
100-240VAC |
